Eehe Modern Bi Folding Aluminium Sliding Glass Doors with Project Patio Double Glazed

After-sales Service: 24/7 Online Support for Fast Solutions
Warranty: 5 Years
Surface Finishing: Finished

Product Description

Basic Specifications

Model NO.153 series
Glass TypeTempered Glass
CertificationCE, Nfrc
Open StyleSliding
PositionExterior
Edge Depth153mm/230mm
Profile Wall Thickness2.5mm
Standard Glass5mm Gr+27ar+5mm Gr
Size RangeW:500mm-1800mm / H:1800mm-3200mm

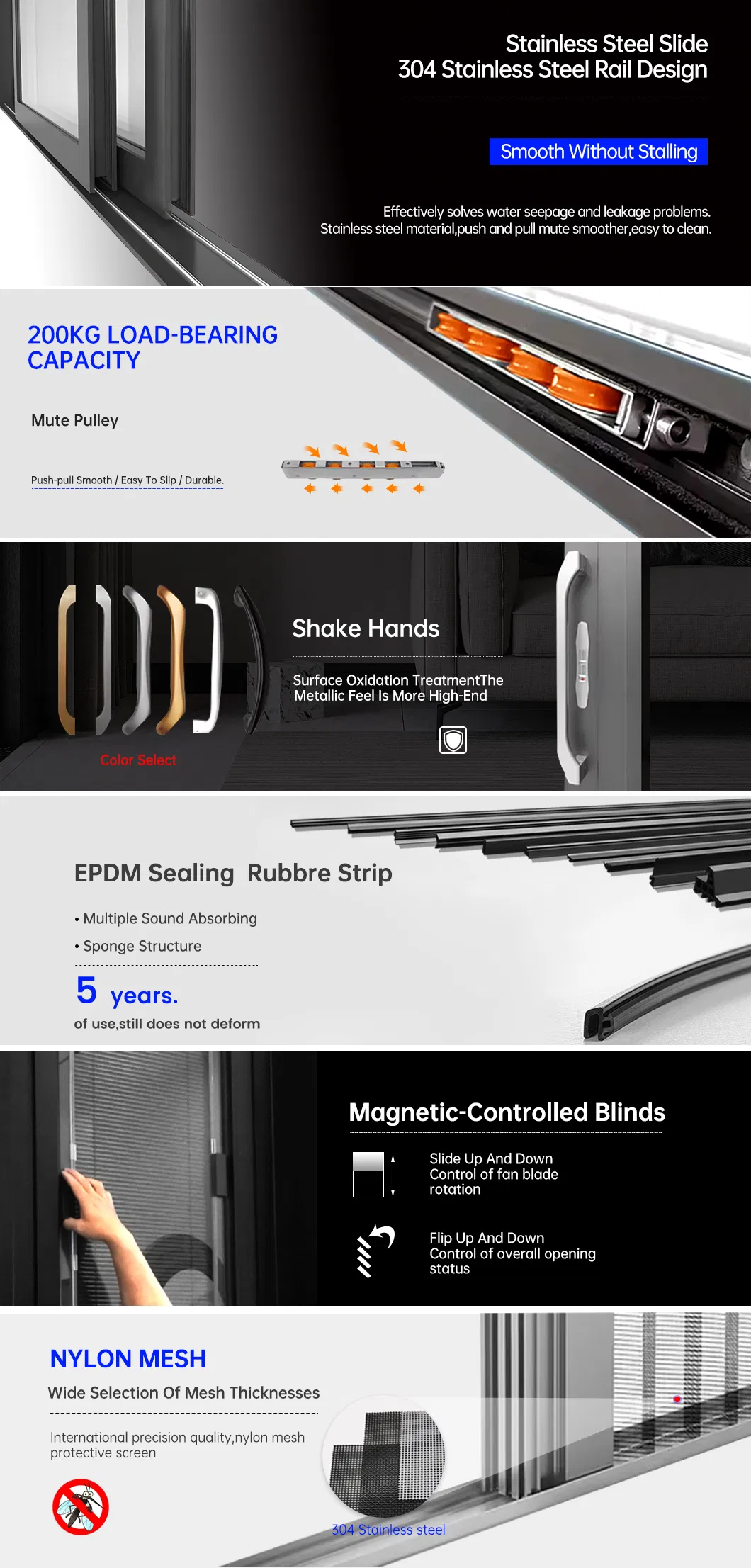

Optional TrackHigh and Low Rails, Stainless Steel

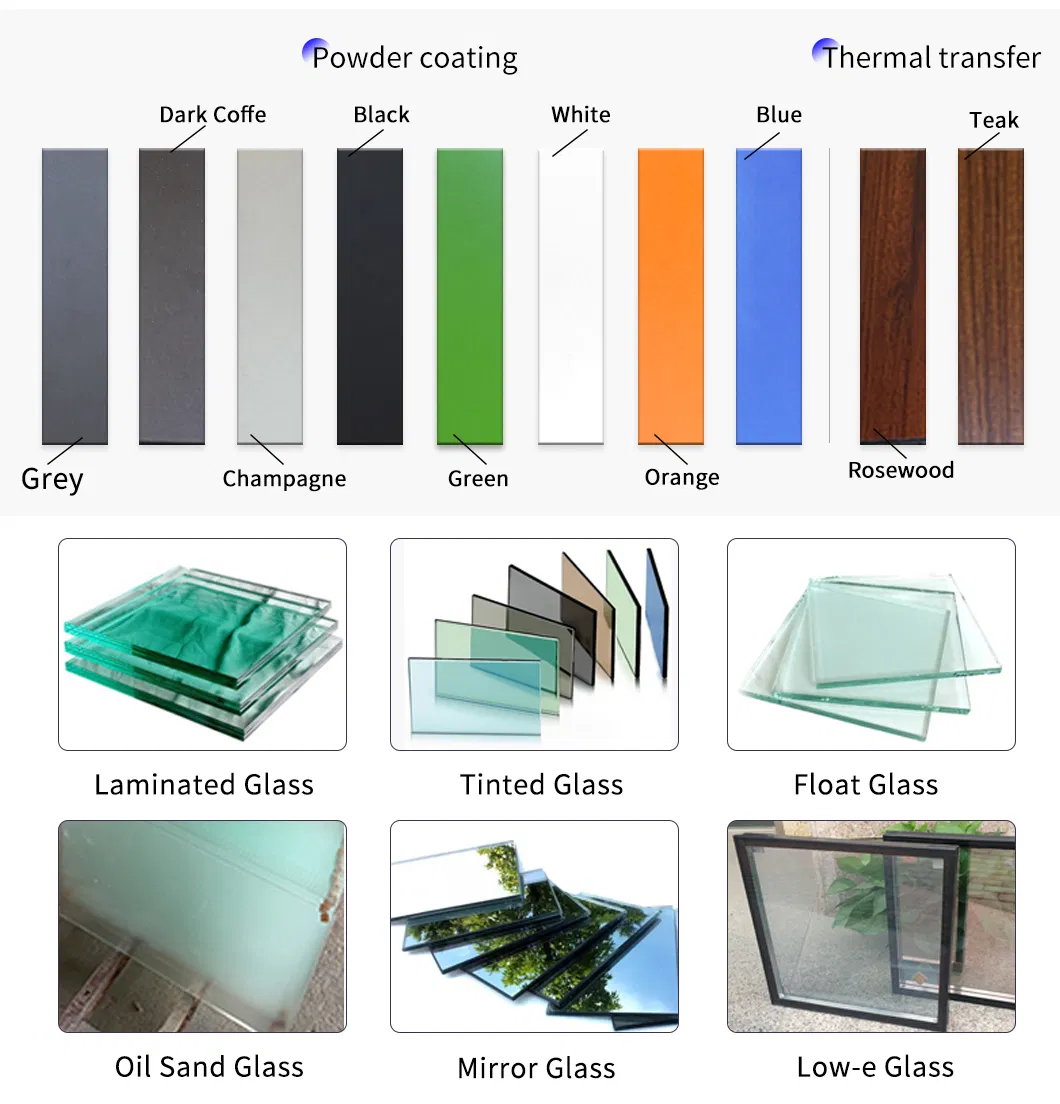

Selectable ColorsGray, Dark Brown, White, Champagne
Production Capacity100,000 Square Meters Per Month
Aluminium Sliding Glass Doors
🌎
Wide Coverage

Providing professional solutions across North America with extensive experience.

Responsive Service

Quick response through online communication and onsite resolution for all projects.

🛡️
Quality Assurance

Focused on replacement solutions for non-human factors to ensure long-term reliability.

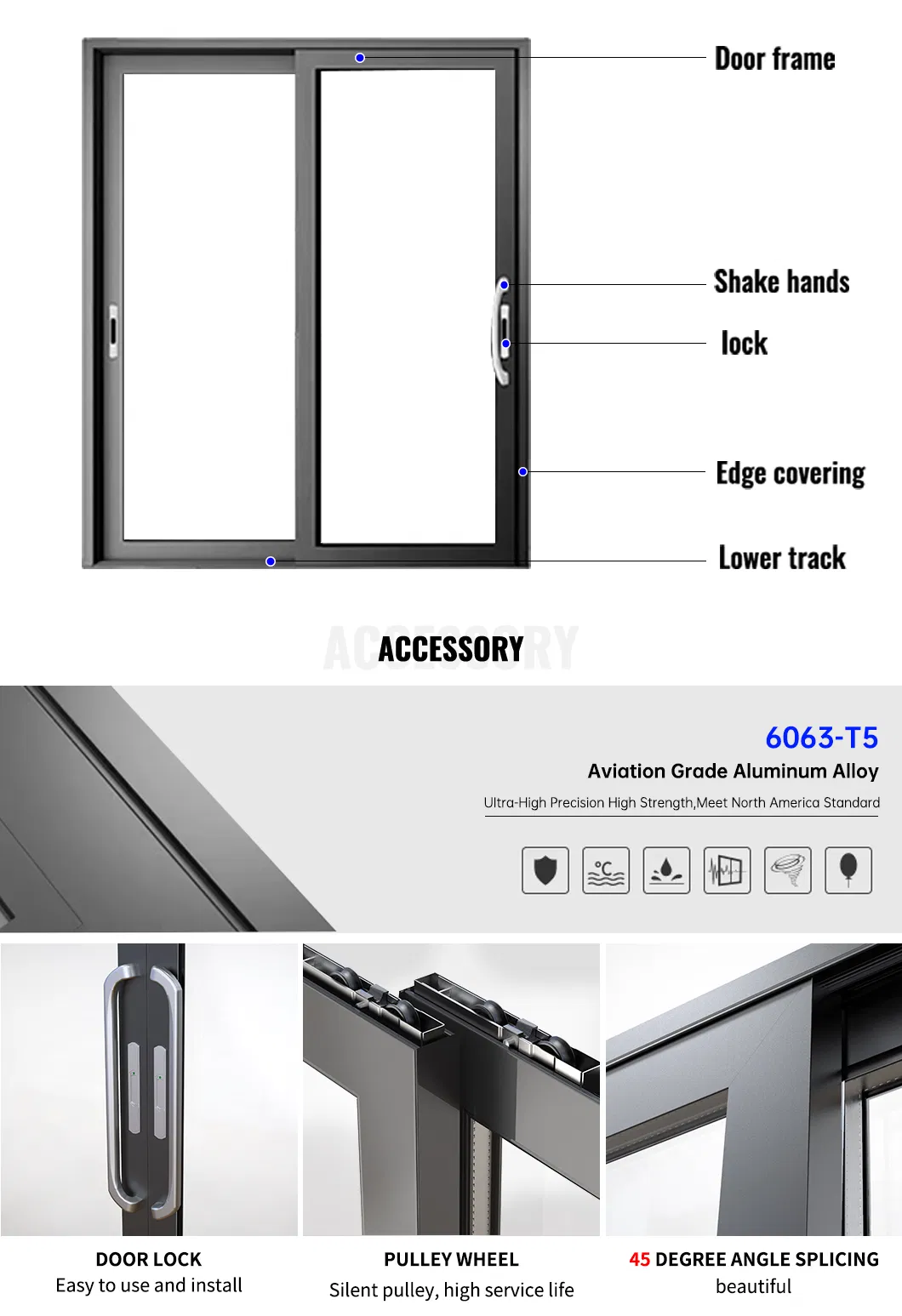

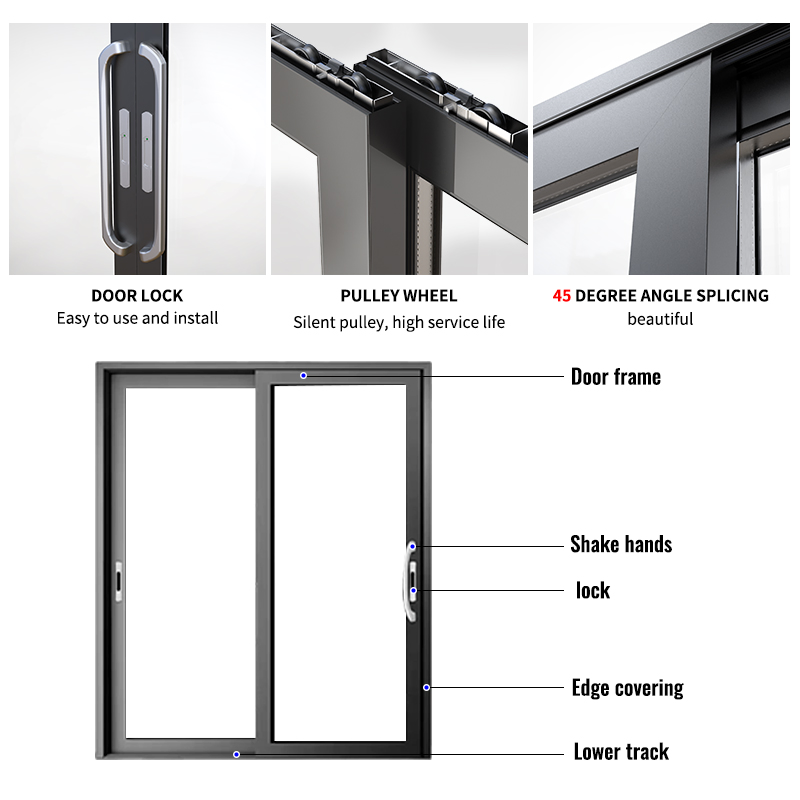

Material & Hardware

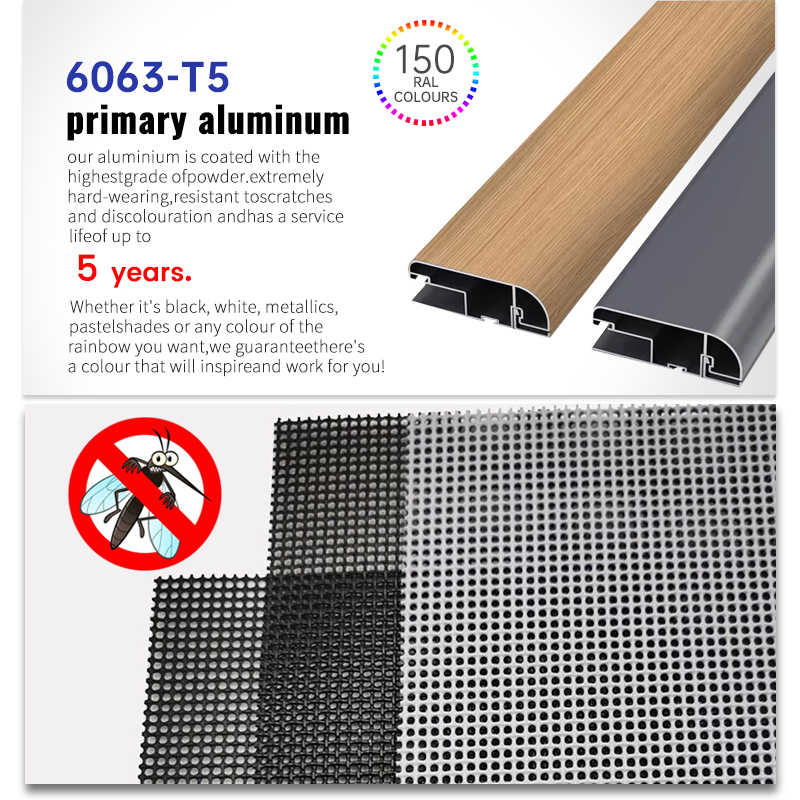

Material1.2-2.0mm Thickness Thermal Break Aluminum Profiles
FinishingPowder Coating
Advanced Glass5mm(Low-E)+20AR+(Low-E)5mm + Warm Edge + Argon
HardwareCustomized Premium Hardware
Project Patio Double Glazed

Innovative Design Concepts

Embrace the future of window and door design. Our series invites you to reimagine your living space, offering products that redefine your view with sleek aesthetics and superior functionality.

Modern Window Design

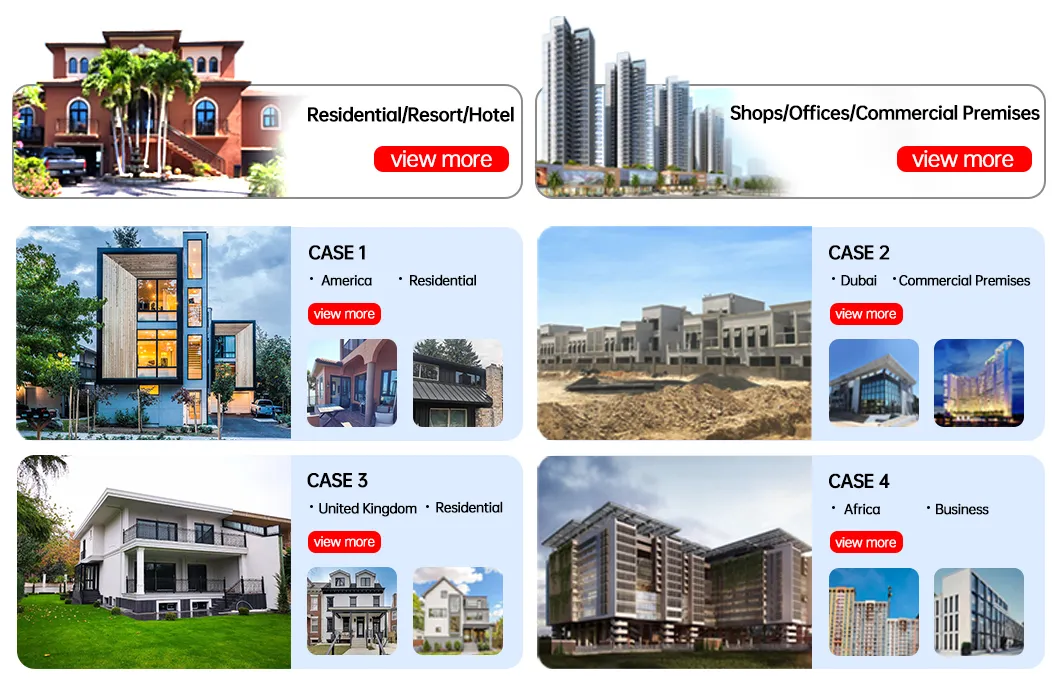

Global Project Excellence

Our projects span diverse scenarios such as luxury apartments, commercial complexes, and high-end hotels. Each delivery demonstrates compliance with world-class engineering standards.

Project 1
Project 2
Project 3

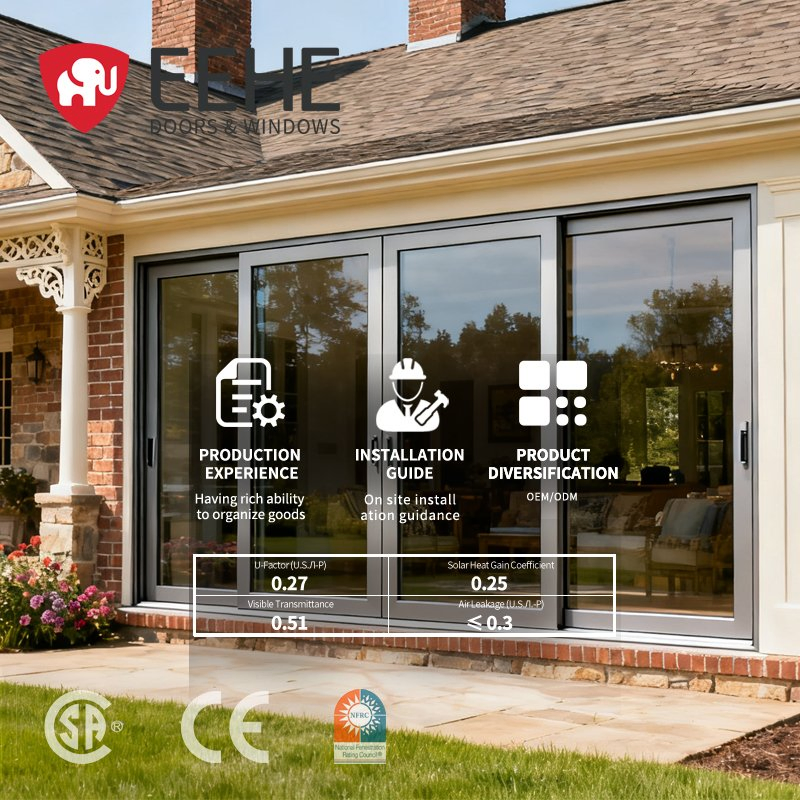

Superior Insulation & Durability

Beyond aesthetics, our sliding doors excel in water resistance and thermal insulation, certified under North American standards for extreme weather conditions.

Certification Details Waterproofing Test

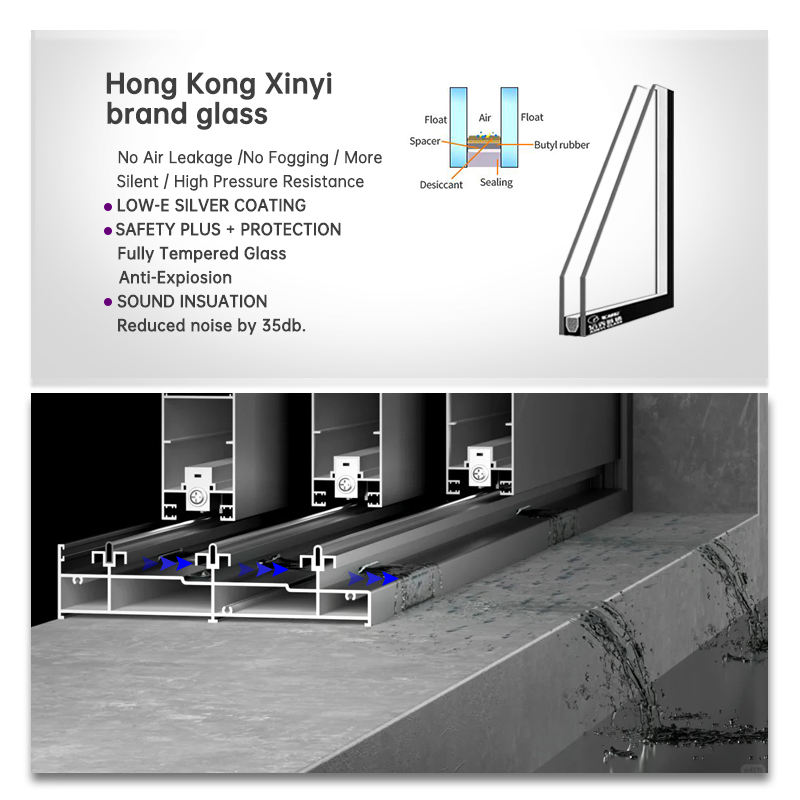

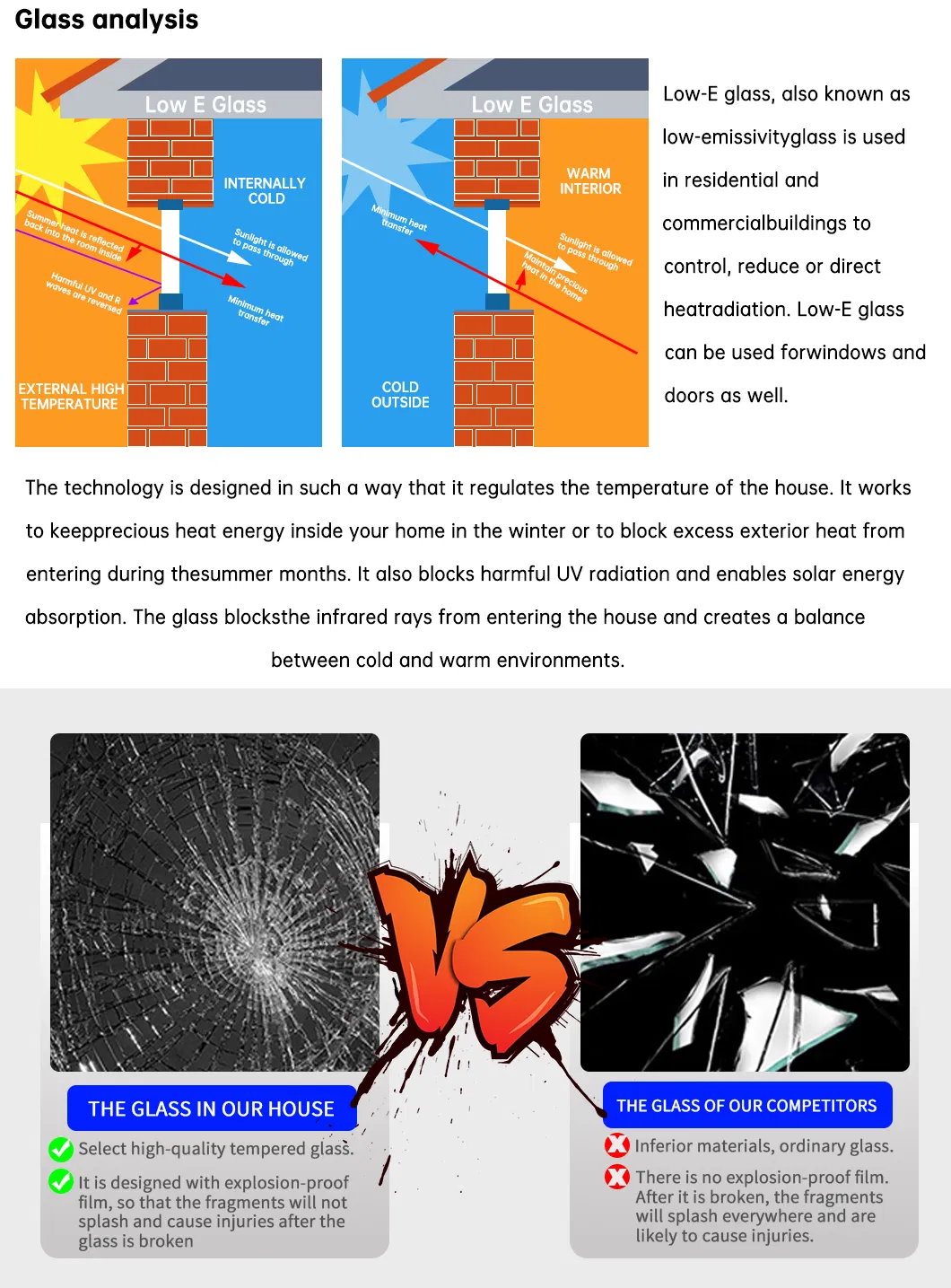

Premium Glass Technology

Utilizing high-quality glass sheets with high light transmittance, low impurity content, and strong stability, fully complying with international safety specifications.

Glass Technology
Glass Detail 1
Glass Detail 2

Frequently Asked Questions

Q1: What are the main features of the 153 series sliding doors? A: The 153 series features high-strength aluminum profiles, multiple track options (including stainless steel), and superior thermal insulation with Low-E glass.
Q2: Are these doors certified for the North American market? A: Yes, our products are CE and NFRC certified, meeting strict standards for wind resistance, waterproofing, and energy efficiency.
Q3: What glass options are available for these sliding doors? A: We offer 5mm Low-E tempered glass with Argon gas filling and warm edge spacers to optimize thermal performance.
Q4: Can I customize the color of the door frames? A: Yes, selectable colors include Gray, Dark Brown, White, and Champagne, all applied with a durable powder coating finish.
Q5: What is the maximum height and width for a single door leaf? A: The width ranges from 500mm to 1800mm, and the height can be customized up to 3200mm to accommodate large patio openings.
Q6: How are the products packaged for international transport? A: We use high-quality wooden boxes or wooden frames to ensure the glass and aluminum profiles are fully protected during transit.
