Envi Window
1 / 5

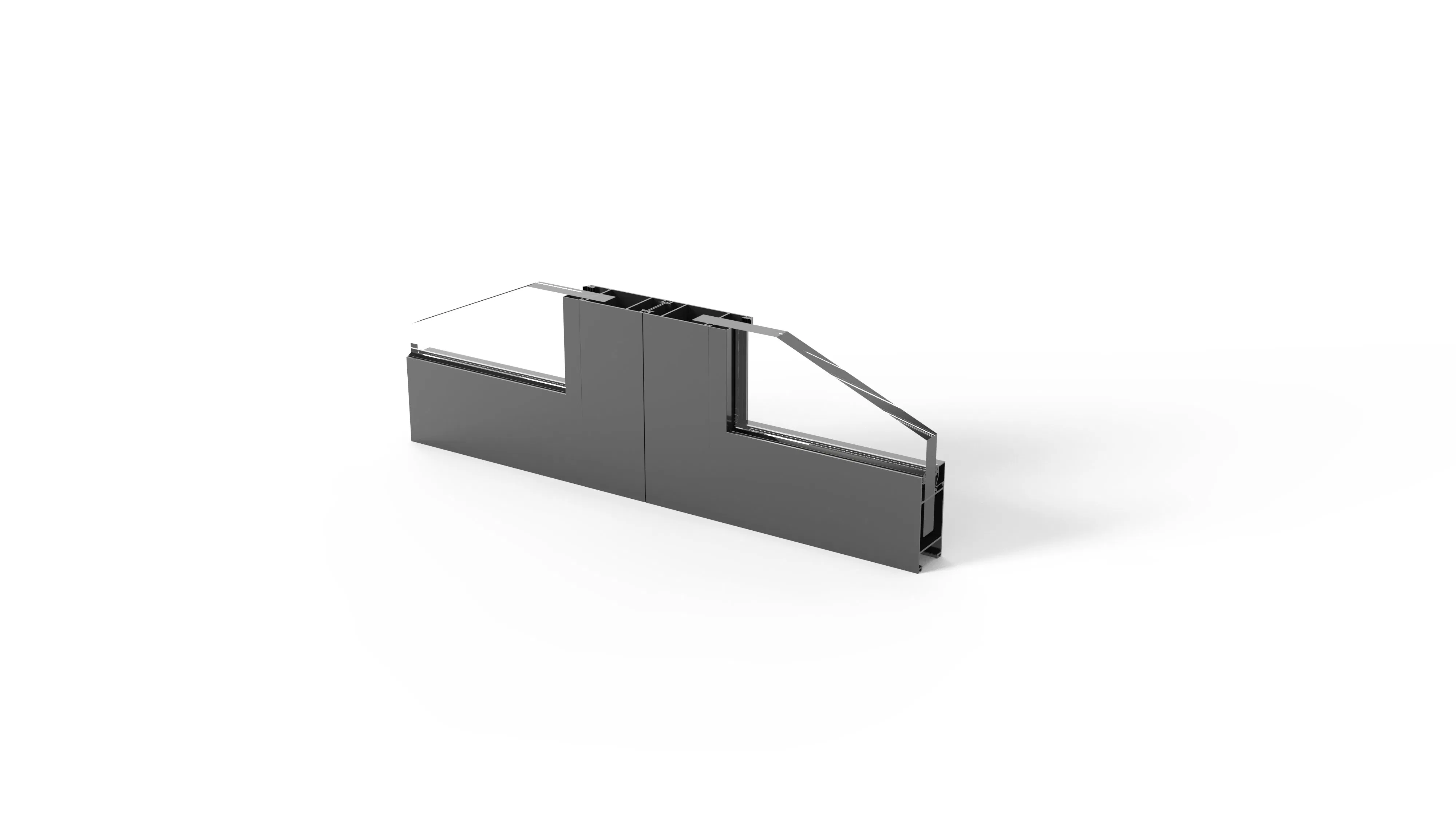

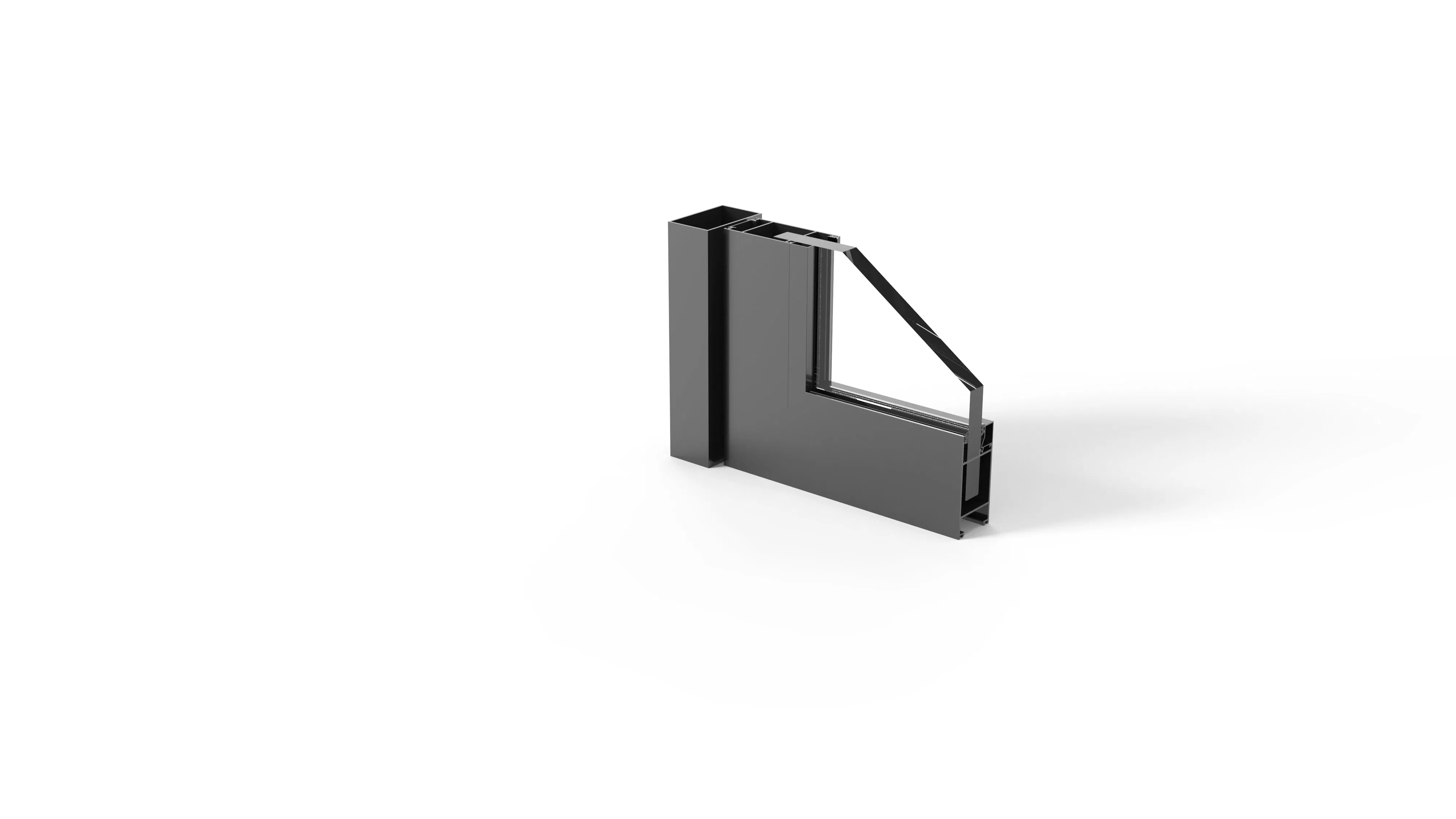

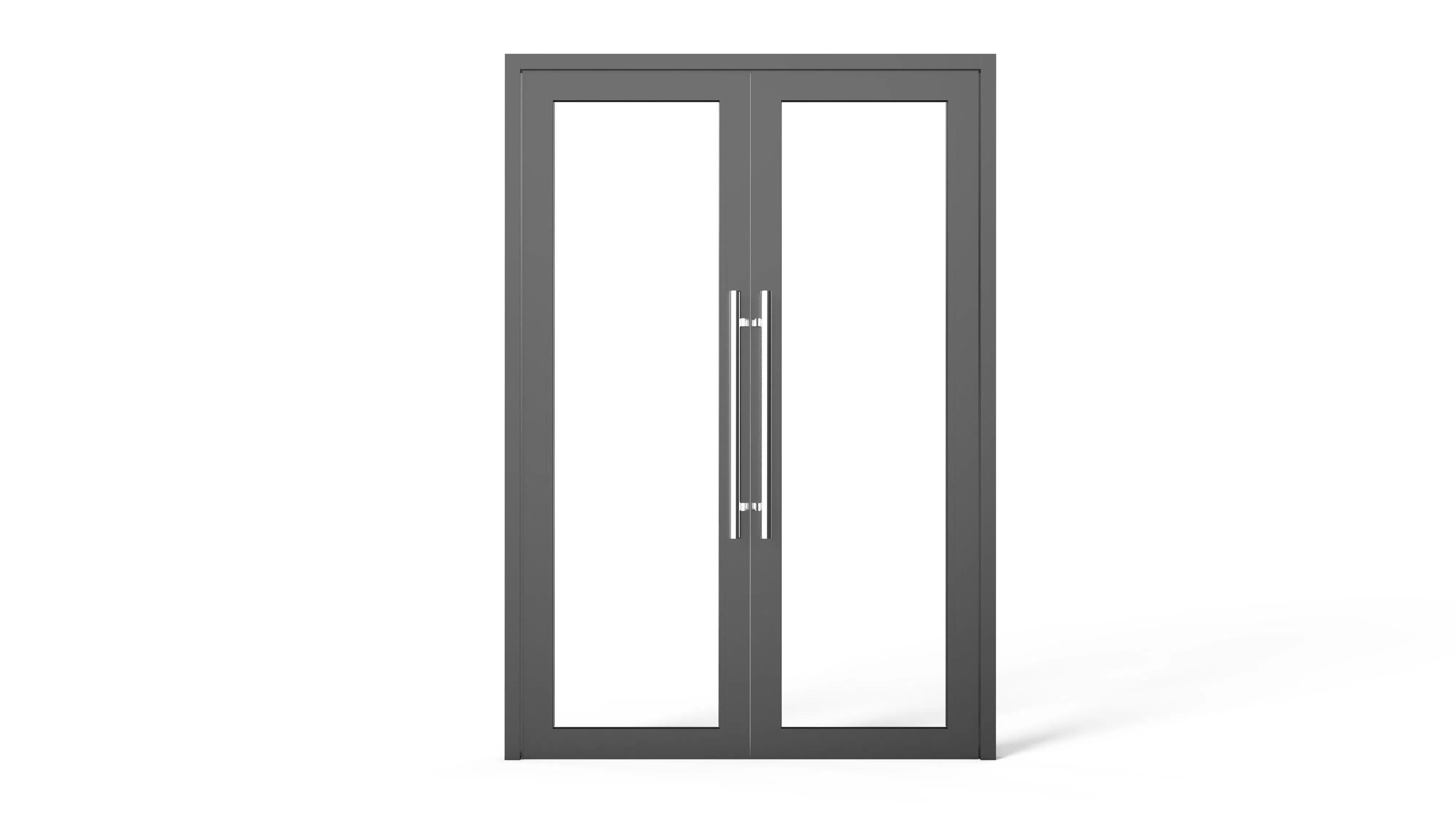

1) The pivot sash and fix of HD49 designed in right angle style, showing a simple fashion idea.
2) Adopt 6+9A+6 DGU glass, which has good sound insulation to reduce the harm of noise to the body and enable you a quiet and comfortable living environment.
3) Glass beads adopted, making it easy for glass installation.
| Performance Data | ||||
|---|---|---|---|---|
| Heat Preservation | Sound Insulation | Watertight | Airtight | Wind Load Resistance |
| 3.2 W/(m².k) Level 4 |
35 dB Level 4 |
200 Pa Level 2 |
Level 3 | 3.0 Kpa Level 5 |
| Structural Parameters | |||
|---|---|---|---|

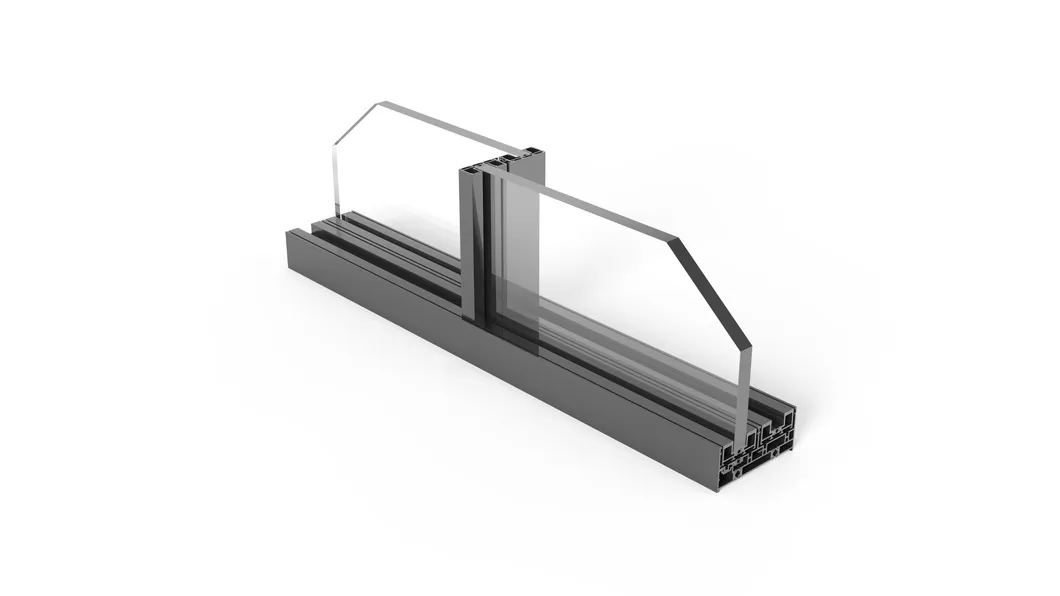

| Sash Dimensions | Visible Width | Profile Depth | Glass Thickness |
| Width: 500-1100mm Height: 1920-2800mm Weight: 120kg |
Frame: 50mm Sash: 100mm |
Frame Depth: 80mm Sash Depth: 49mm |
SGU: 5-10mm DGU: 19-24mm |
| Factory Production Capacity | |||||
|---|---|---|---|---|---|

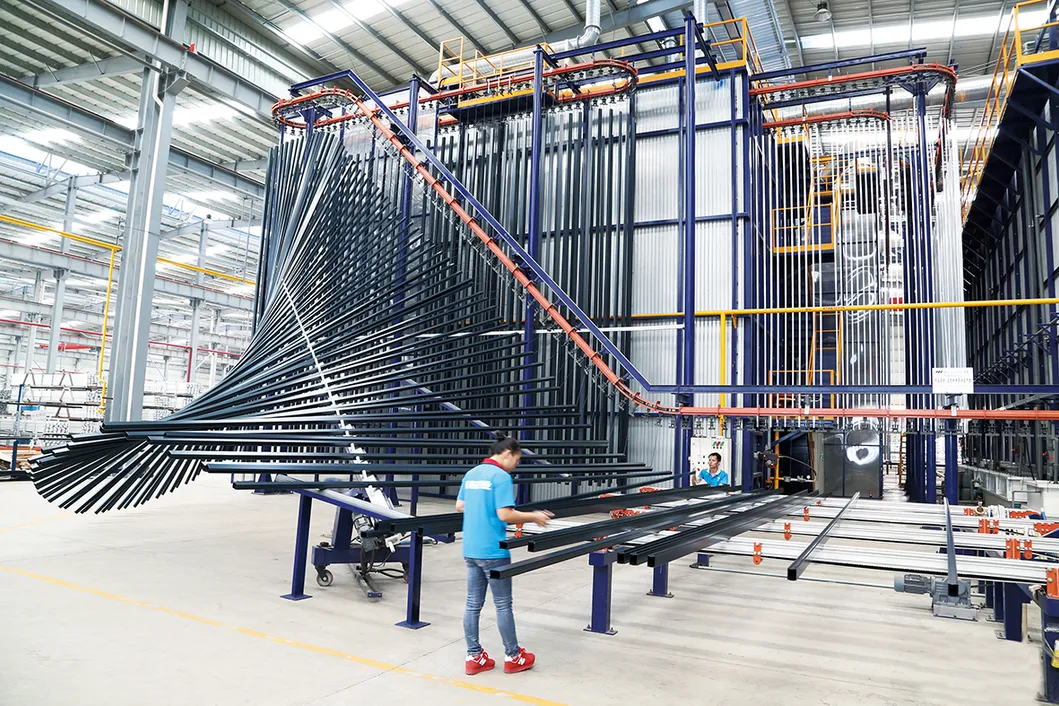

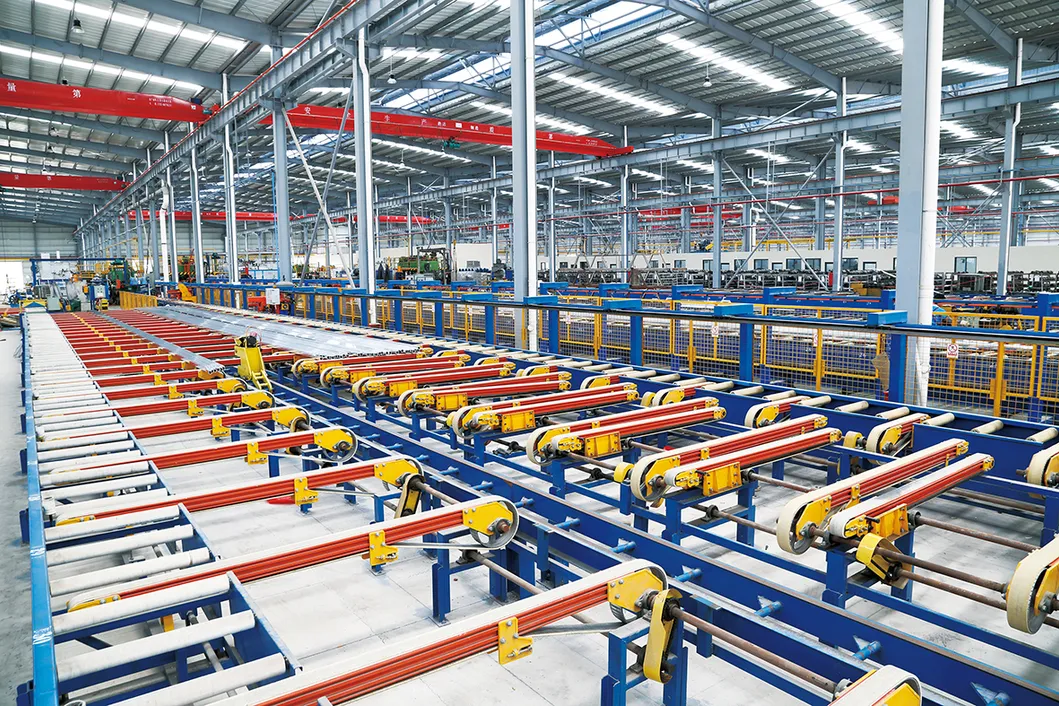

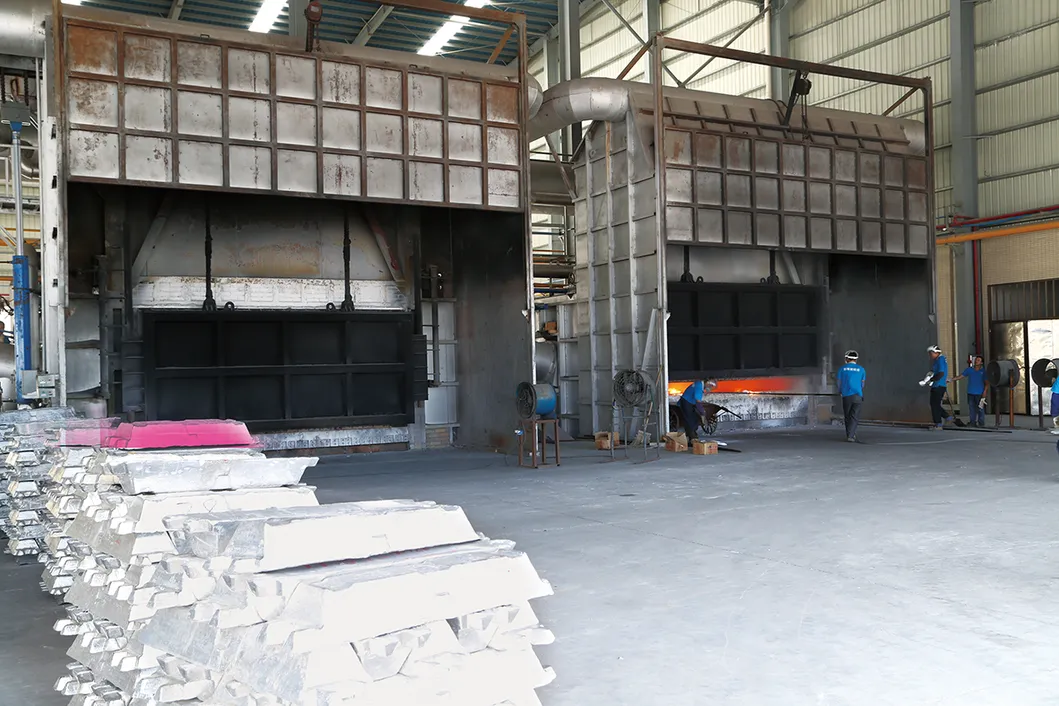

| Alloy Type | Extrusion Dia. | Billet Casting | Extrusion Lines | Coating Lines | Anodized Lines |

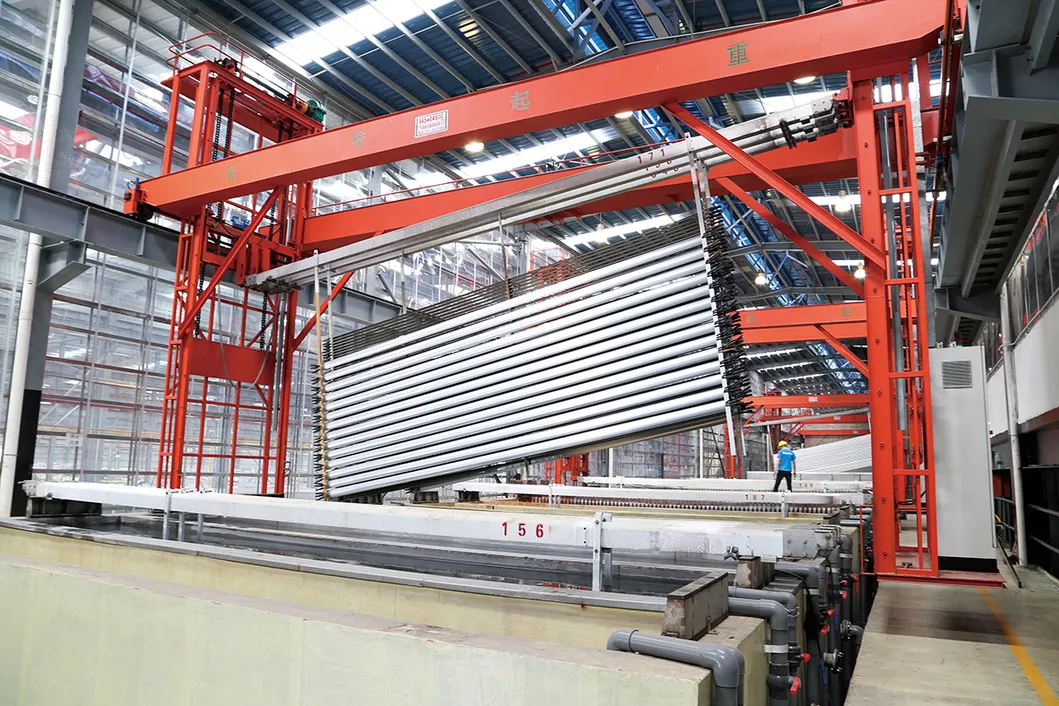

| 6063/6061-T4,5,6 | 80mm-300mm | 2 Lines | 14 Lines | 1 Vertical Line | 1 Automatic Line |
| Factory Area | Annual Output | Staff / R&D | |||
| 1800 Acres | 100,000 Tons | 650 / 25 Members | |||
Professional suggestions for engineering and design needs on complex projects.
Wind load calculation, façade optimization, and installation guidance.
Developing new window and door systems with premium accessories for market requirements.
