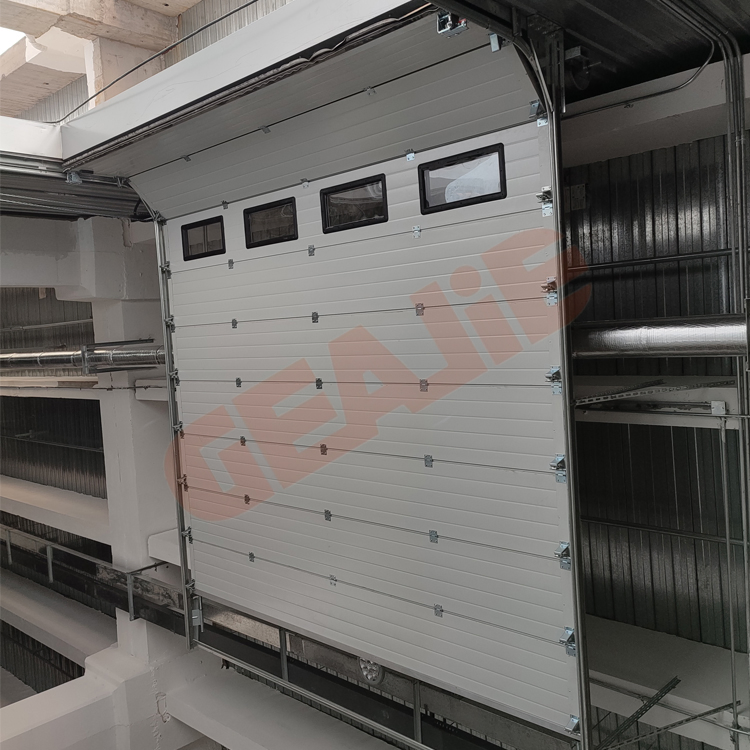

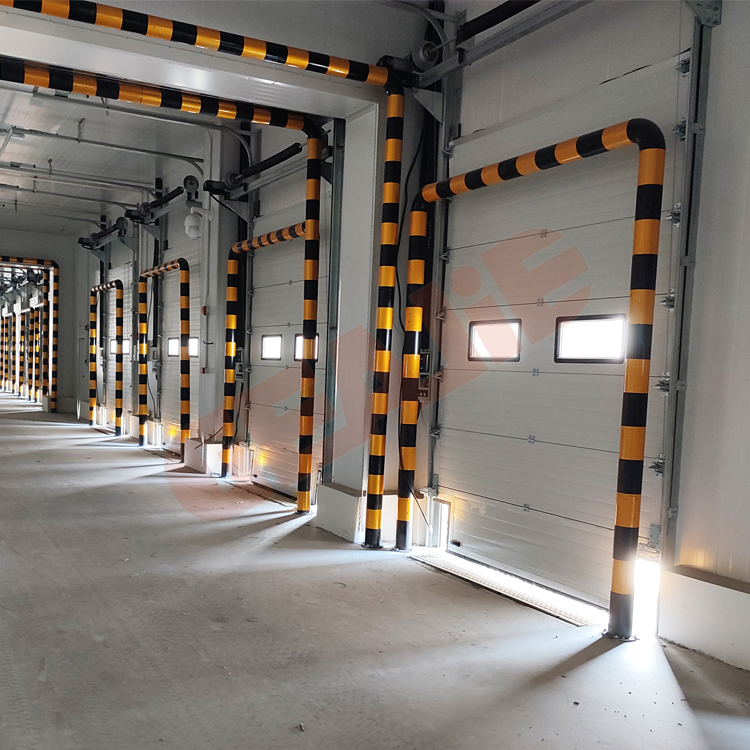

High Quality Automated Sectional Garage Lift up Overhead Doors
High Quality Automated Sectional Garage Lift up Overhead Doors
High Quality Automated Sectional Garage Lift up Overhead Doors
High Quality Automated Sectional Garage Lift up Overhead Doors
High Quality Automated Sectional Garage Lift up Overhead Doors
1 / 5
High Quality Automated Sectional Garage Lift up Overhead Doors
High Quality Automated Sectional Garage Lift up Overhead Doors
High Quality Automated Sectional Garage Lift up Overhead Doors
High Quality Automated Sectional Garage Lift up Overhead Doors
High Quality Automated Sectional Garage Lift up Overhead Doors

High Quality Automated Sectional Garage Lift up Overhead Doors

Customization: Available
After-sales Service: Available
Warranty: 12 Months
Send Inquiry

Product Description

📊

Basic Specifications

Model NO.ISD-83
MaterialAluminum Alloy
TypeSliding Sectional
Open StyleSliding
Opening TypeWith Remote Control
Special FunctionInsulated and Cold Storage
CertificationTUV, CCC, ISO9001, RoHS, CE
Wind ResistantStandard 450PA, Higher to 700PA
Panel Thickness40mm Anti-Pinch
Size RangeW:1500-6000mm H:2000-6000mm
Speed0.25m/S
ApplicationFactory, Garage, Hotel, Warehouse
📦

Packaging & Delivery

Package Size200.00cm * 300.00cm * 150.00cm
Gross Weight500.000kg
Transport PackageStandard Seaworthy Package
🏗️

Product Description

Industrial Sectional Door Overview

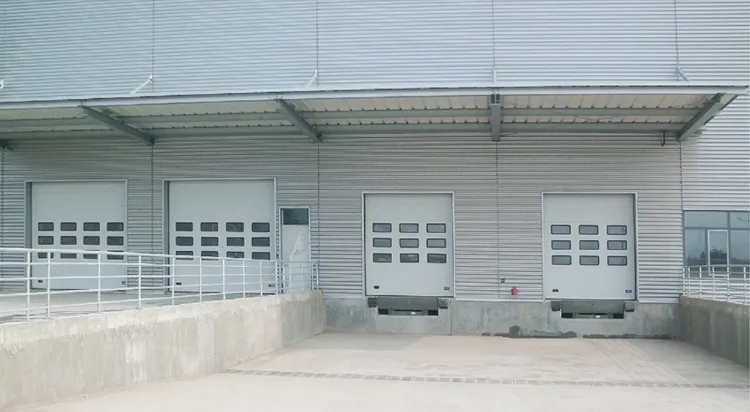

Door Detail 1

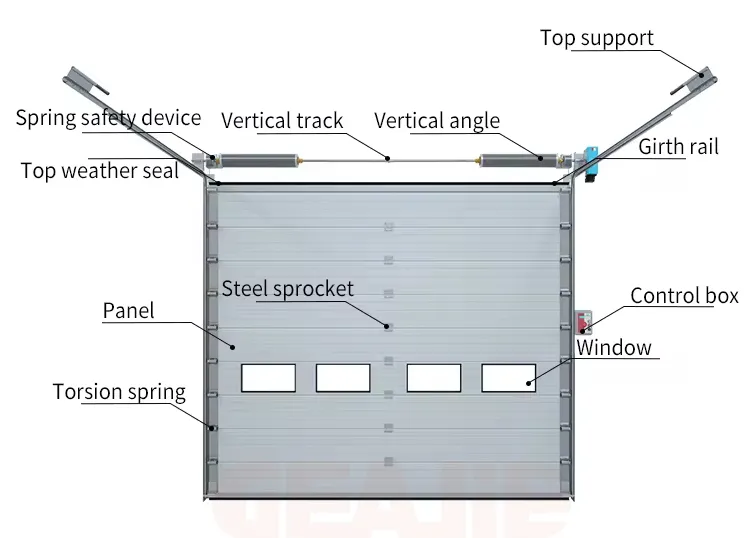

Door Detail 2

Excellent insulation and closeness performance, good anti-wind structure, safe and reliable operation guarantee!

Material Description
Size rangeW:6000-12000mm, H:2000-8000mm
Opening speed0.25m/s
Panel materialGalvanized steel or aluminum plate
Panel thicknessAnti-pinch: 40mm / Insulated bridge: 43mm
Safety devicesWire rope breakage protection, torsion spring protection, wireless airbag
Wind resistantStandard 450Pa, higher to 700Pa
ColorsRAL9002, RAL9016, RAL1023, RAL5005, Customizable

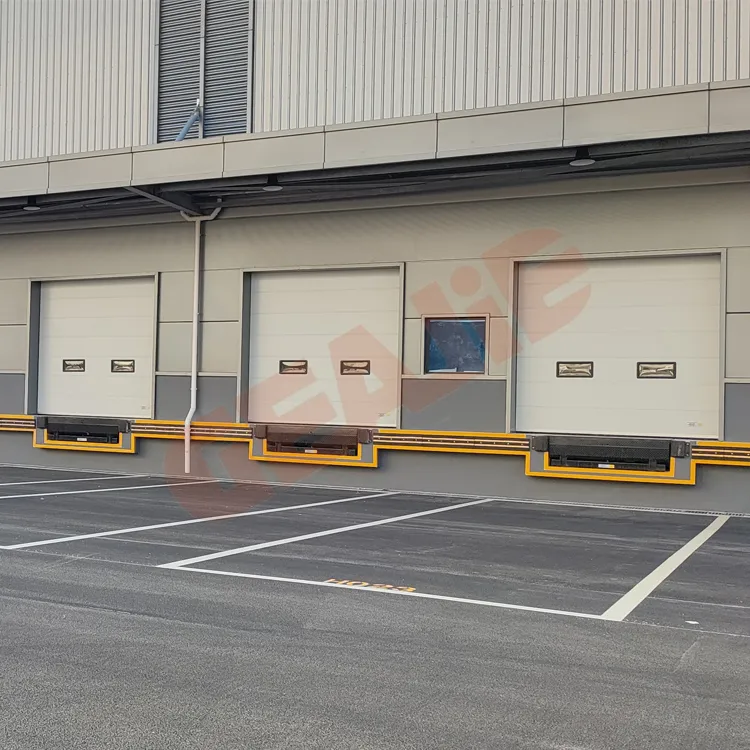

Showcase 1

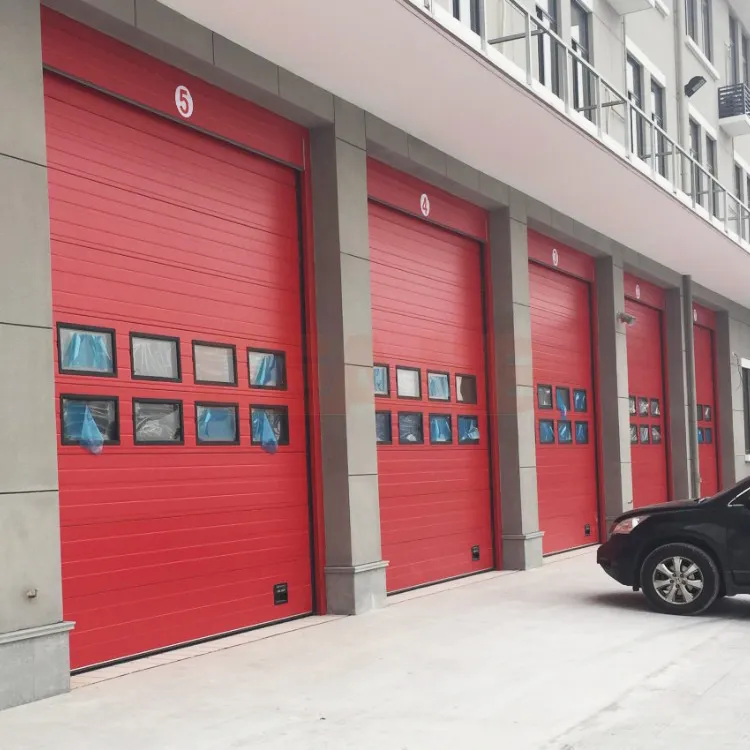

Showcase 2

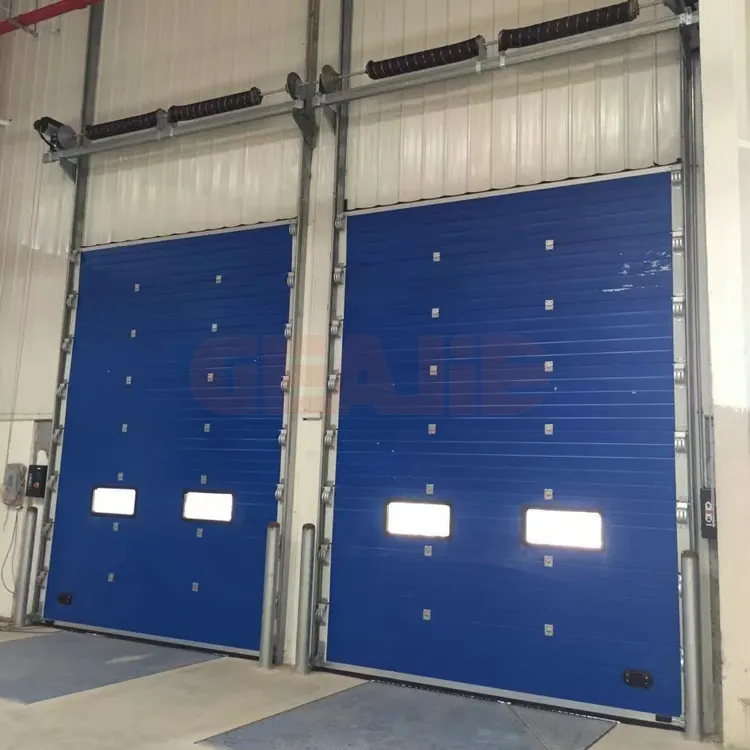

Showcase 3
Motor Technical Parameters
Model10DI10C14 H-F
Output torque100Nm100Nm140Nm
Output shaft speed24 rpm24 rpm14 rpm
Rated power0.37KW0.37KW0.55KW
Rated voltage1*AC 230/440V3*AC 230/440V1*AC 230V
Protective levelIP 54IP 54IP 54

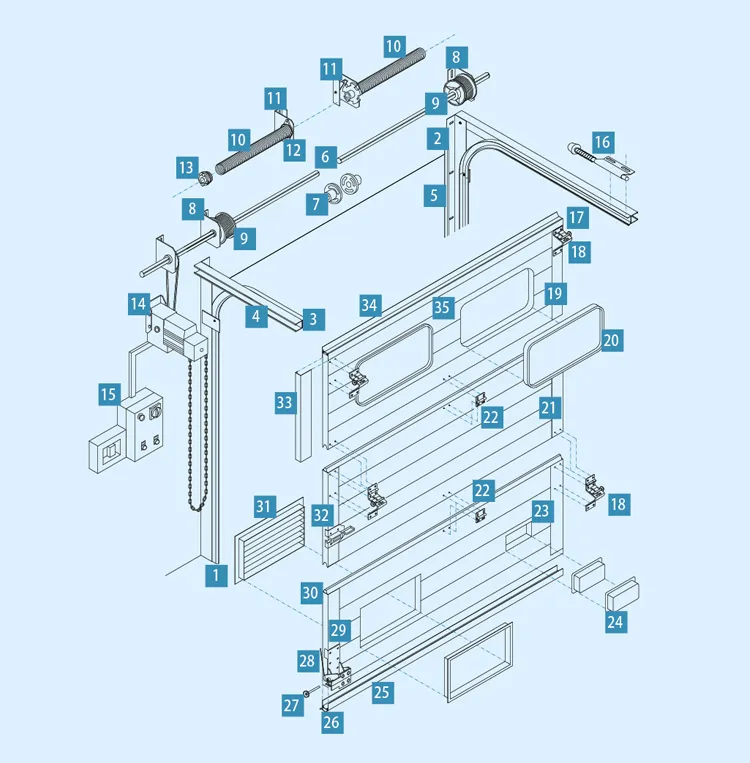

Structural Drawing

Product Advantages

  • ✔ Variety of lifting methods (Straight, Standard, High Lintel) to suit site structures.
  • ✔ Unique roller shaft design for force distribution and longer service life.
  • ✔ Sturdy double-sided galvanized steel with high-density polyurethane insulation.
  • ✔ Mute nylon wheels keeping noise level ≤60db.
🏢

Manufacturing Excellence

Factory View

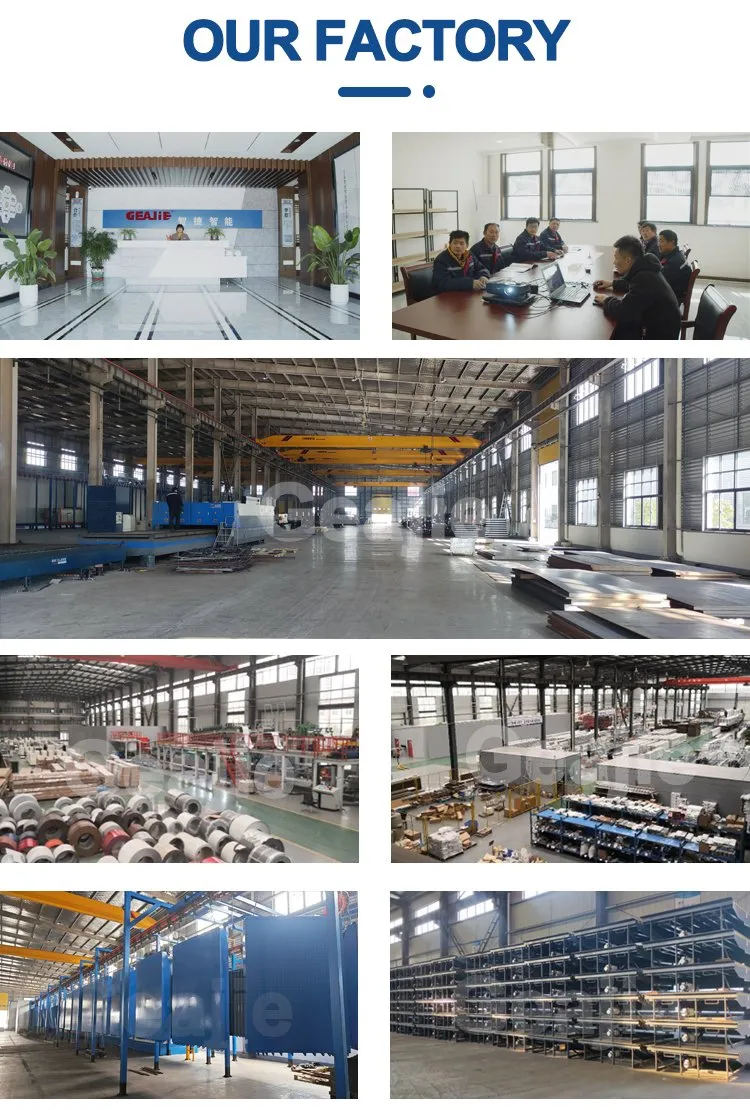

Production Line

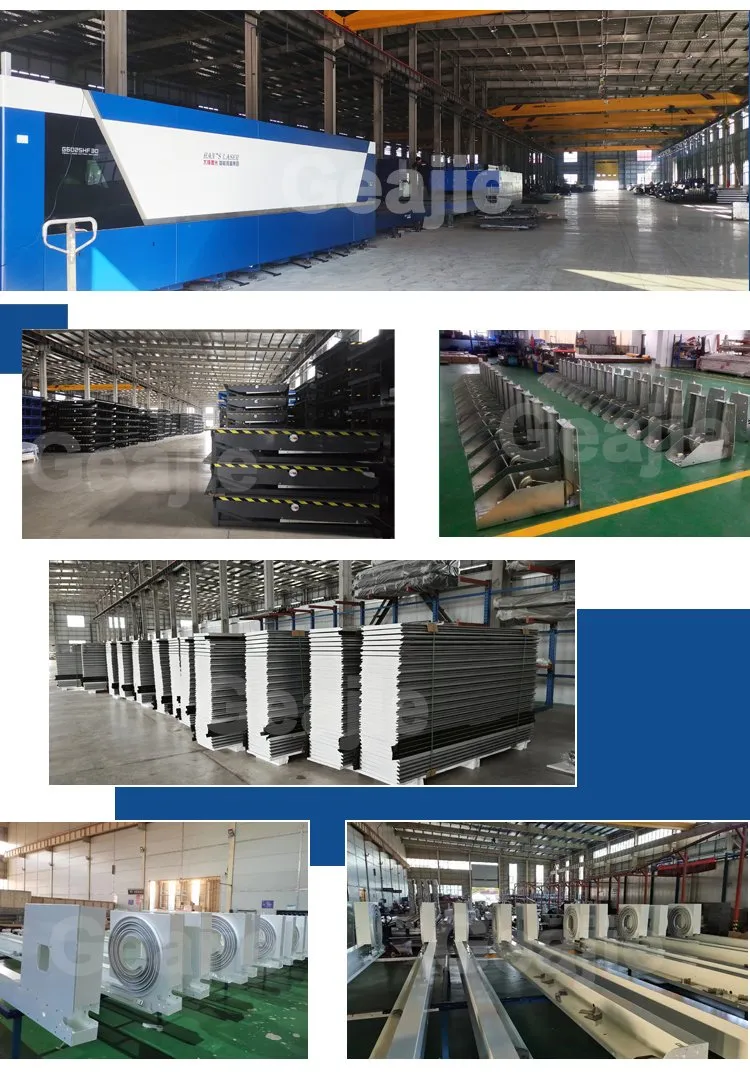

Workshop
❓

Frequently Asked Questions

Q1: What is the minimum order quantity (MOQ)?
A: 1 set is acceptable for standard orders.
Q2: What is the maximum available size of the doors?
A: The maximum length can reach 6.5 meters and the maximum width is 6 meters, both are adjustable based on requirements.
Q3: What other industrial products do you provide?
A: We produce sliding doors, rapid doors, garage doors, rolling shutters, cold storage doors, loading platforms, and industrial fans.
Q4: How difficult is the installation process?
A: Our products are designed for easy installation with clear structures.
Q5: What are the main benefits of using a dock leveler?
A: It significantly improves the efficiency of cargo handling and ensures easy unloading and loading of goods.
Q6: Are the door panels customizable?
A: Yes, colors (RAL range) and specific panel thicknesses can be customized to your project needs.

Related Products

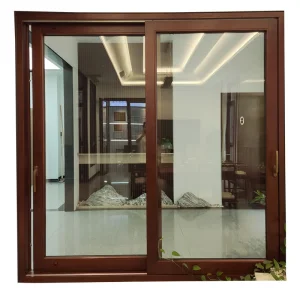

Modern Oak Wood Sliding Door Sound Insulation with Decorative Features Solid Aluminium Alloy Modern Design

Modern Oak Wood Sliding Door Sound Insulation with Decorative Features Solid Aluminium Alloy Modern Design
Full Form and Size Elegant Luxury Garden Aluminum Sliding Security Door

Full Form and Size Elegant Luxury Garden Aluminum Sliding Security Door

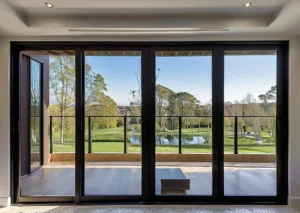

Stacker Doors Aluminum PT Doors Multi Panel Stacker Sliding Door Balcony Doors

Stacker Doors Aluminum PT Doors Multi Panel Stacker Sliding Door Balcony Doors
Custom Aluminum Alloy Sliding Door for Large Openings and Balconies

Custom Aluminum Alloy Sliding Door for Large Openings and Balconies
Aluminum Wood Grain Folding Door Bi-Fold Aluminum Doors Aluminum Folding Sliding Door with Australia Standard Sizes

Aluminum Wood Grain Folding Door Bi-Fold Aluminum Doors Aluminum Folding Sliding Door with Australia Standard Sizes

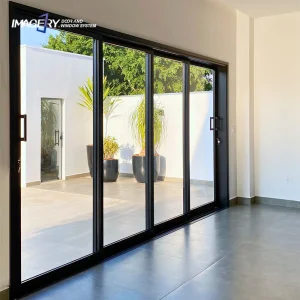

Modern Style Waterproof Interior Door Aluminum Balcony Sliding Glass Door

Modern Style Waterproof Interior Door Aluminum Balcony Sliding Glass Door

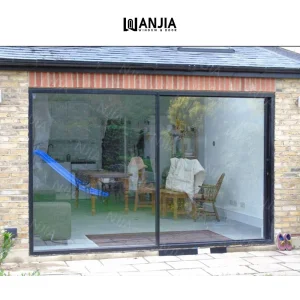

Customized Soundproof Exterior Glass Patio Door Aluminum Sliding Doors

Customized Soundproof Exterior Glass Patio Door Aluminum Sliding Doors
Moisture-Resistant 40mm Total Door Panel Thickness Turbo Automatic Hard Warehouse Fast Door

Moisture-Resistant 40mm Total Door Panel Thickness Turbo Automatic Hard Warehouse Fast Door

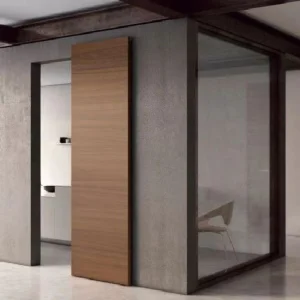

Modern Wood Sliding Barn Door for Bedroom Closet Pre Finished & Easy Install
